Key Features
- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
- Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
- Ideal for models requiring up to 1650 watts of power
- High-torque, direct drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- Quiet, lightweight operation
- External rotor design 6mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
Needed To Complete
80-Amp brushless ESC
4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery
14 x 7 to 12 x 8 Propeller
Overview

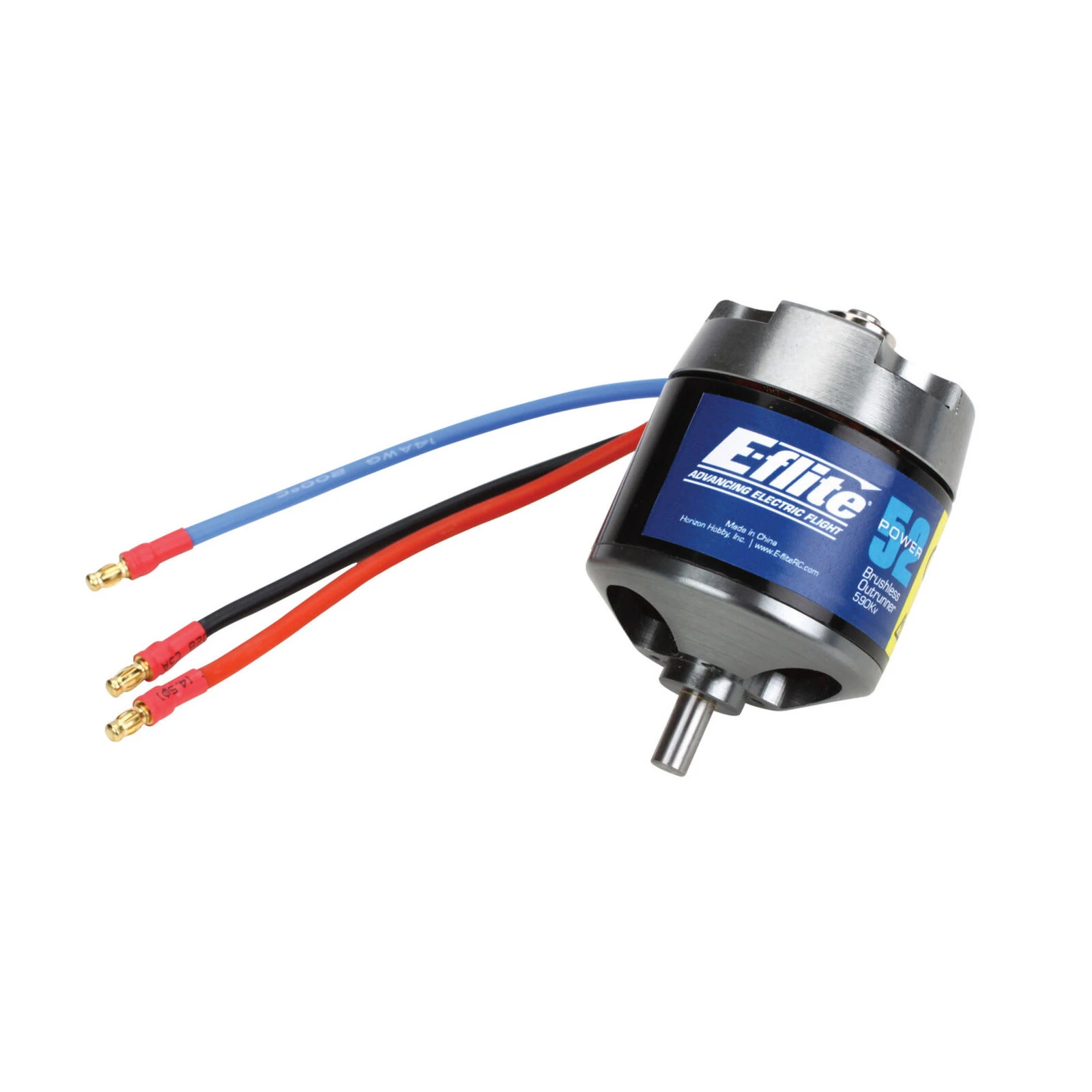

Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.
- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
- Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
- Ideal for models requiring up to 1650 watts of power
- High-torque, direct drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- Quiet, lightweight operation
- External rotor design 6mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
Product Specifications
| Adjustable Timing | No |
| Motor Type | Brushless |
| Connector Type | 4mm Bullet |
| Idle Current (Io) | 2.3A @ 18.5V |
| Input Voltage | 14.8-22.2V |
| Recommended Speed Control | 80-Amp |
| RPM/Volt (Kv) | 590 |
| Shaft Length | 3.1 in (80mm) |
| Application | Airplane |
| Recommended Prop Range | 4S: 14 x 7 – 15 x 8; 5S: 13 x 8 – 15 x 7; 6S: 11 x 10 – 12 x 8 |
| Resistance | 0.016? |
| Shaft Diameter | 6mm |
| Outer Diameter | 2.00 in (50mm) |
| Motor Design | Outrunner |
